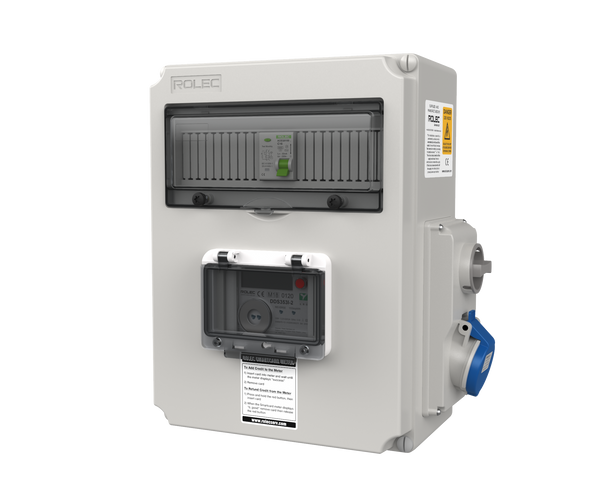

1 Way 16A Smartcard Metered Caravan Hook-Up Unit

LSHU0210

£159.30

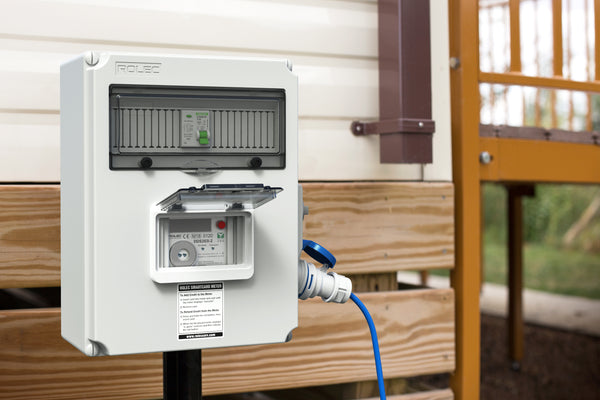

This cost effective and hard-wearing 1way hook-up unit is suitable for all caravan and holiday parks. With its IP44 interlock sockets, this hook-up unit ensures a safe and secure electrical connection(s).

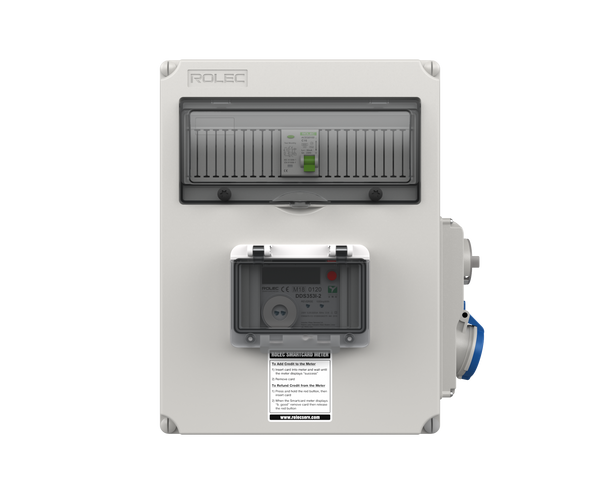

Equipped with SmartCard metering, providing pre-payment electricity metering to caravans and residential homes.

Complete with an IP65 weatherproof polycarbonate enclosure, built-in cable terminals and switchgear access flaps with an optional galvanised ground mounting post.

PRODUCT FEATURES

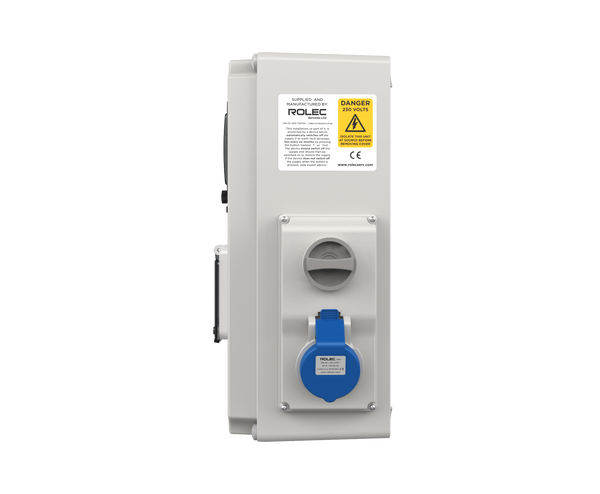

• IP44 interlock socket

• Available in 16A or 32A versions

• 18th edition regulations compliant

• Smartcard metering

• Built-in overload and 30mA fault current protection

• IP65 weatherproof polycarbonate enclosure

• Built-in cable terminals

• Switchgear access flap

• Optional galvanised mounting post

• Easy to install & maintain • IP Rated & UV stabilised

• Fire retardant

TECHNICAL DATA

Input Voltage - 220 to 250 VAC / 50 Hz (Single Phase)

Cable Terminals - 3x50mm Tunnel Terminals Fitted as Standard (Others sizes Available on Request)

Earthing - Brass Earth Plate & Earth Terminals

Certifications & Compliances

Enclosure – EN 60670-1, EN 60670-22

Flame Retardance – IEC 60695-2-11:2014

Low Voltage Directive (LVD) – 2014/35/EU

Environmental Protection – IP65 Enclosure, IP44 Socket(s) Weather resistance – BS EN 60529:1992+A2:2013

Socket(s) – BS EN 60309-2:1999+A2:2012

Cable – BS 6004 Metering – EN50470-1, EN50470-3, 2004/22/EC, MID B+D Certified

RoHS – 2011/65/EU

REACH – 1907/2006

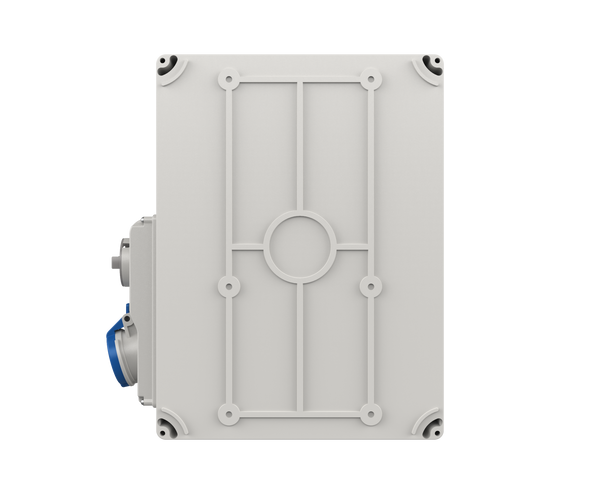

Dimensions - Large – 270mm x 360mm x 152mm (W x H x D) Post Mounting Fixing Points– 130mm x 190mm (W x H) Materials Polycarbonate Enclosure

Operating Temperature - -25°C to +60°C

Colour - Grey
